STABILITY OF A SYNCHRONOUS MACHINE

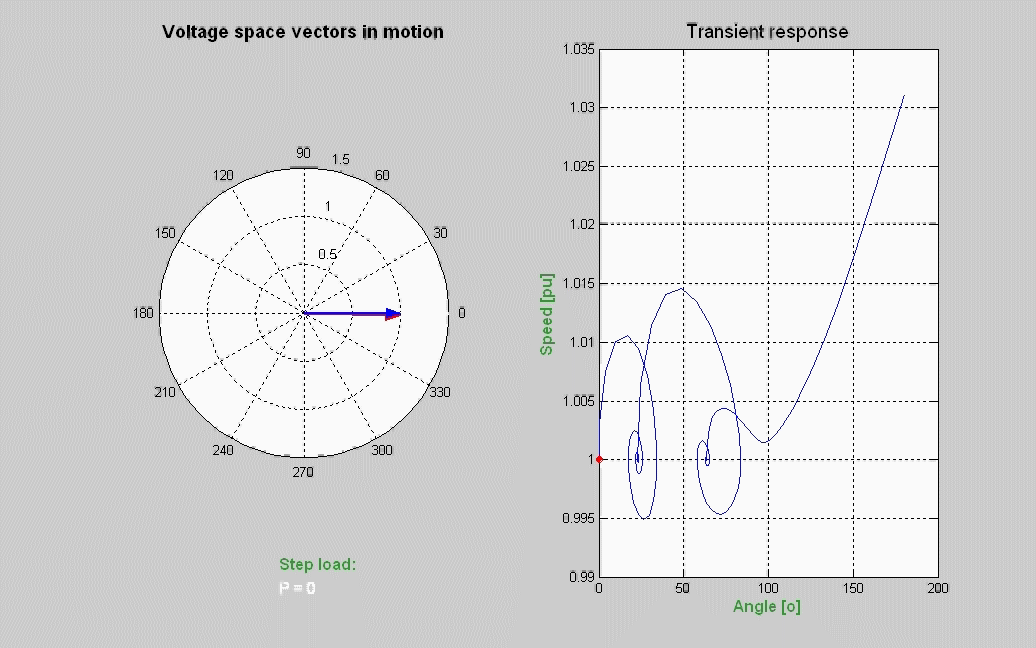

A synchronous machine connected to an infinite bus is subjected to two consecutive step loads. A slight further increase in the load leads to instability and loss of synchronism.  The bus voltage V and internal machine voltage E are portrayed in a synchronously rotating frame. The corresponding speed versus angle response is also shown.
