SPACE VECTORS

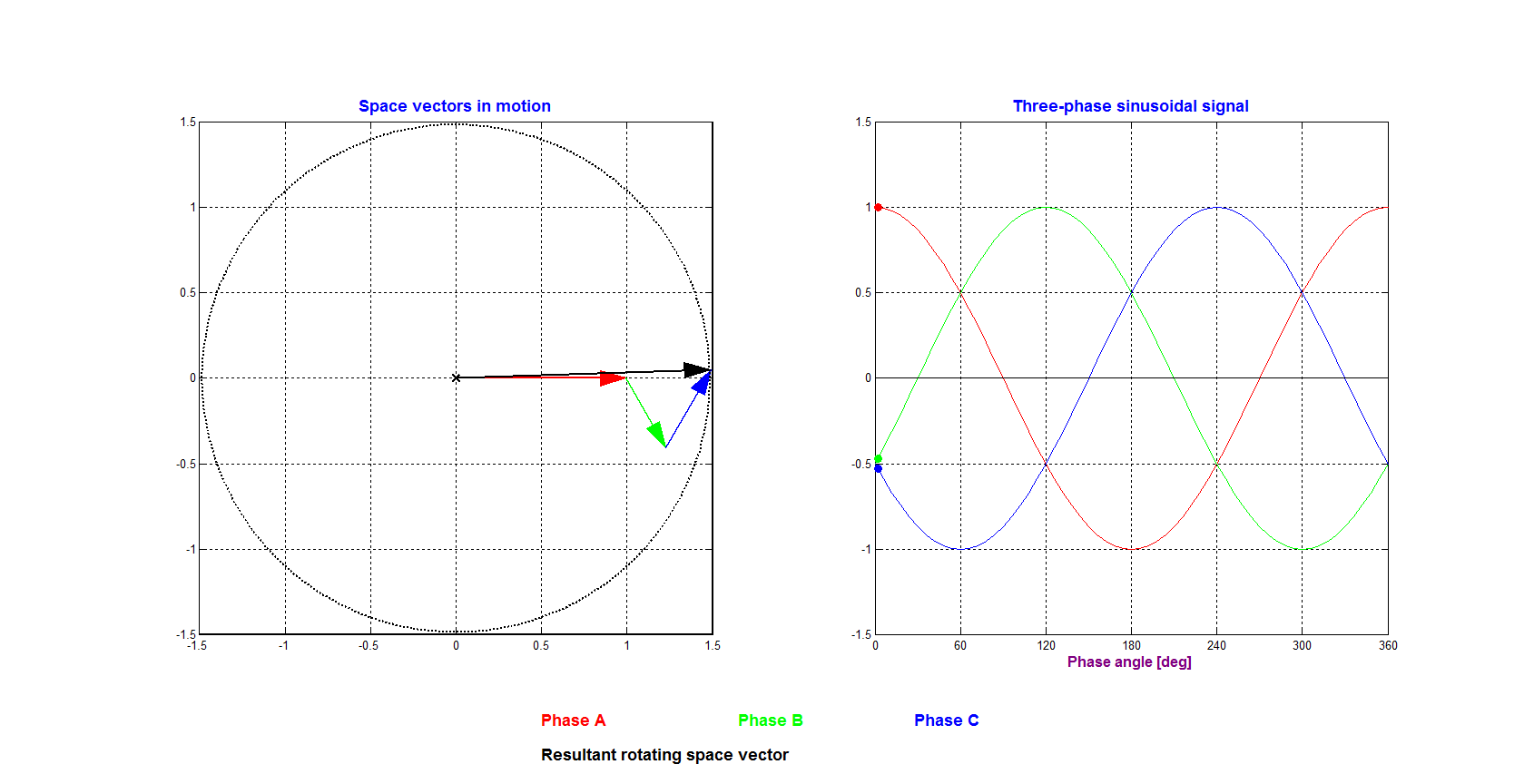

This animation shows the motion of space vectors for the case of a balanced three-phase sinusoidal signal: f_A = cos(ωt), f_B = cos(ωt-α), f_C = cos(ωt+α) where α = 2π/3. The corresponding space vector is obtained from f_R = (f_A + γ f_B + γ² f_C) = e^jωt where γ = e^jα.
