 Reconfigurable
Computing System (RCS) is a system in which the hardware adapts
itself to the running application. Such systems usually
consist of a host processor, tightly coupled with a
reconfigurable functional unit (RFU), which could be an
FPGA chip, or some reconfigurable hardware on the same
die as the CPU. The fact that fast, tailor-made RFU
operations (RFUOPs) can be implemented on RFU opens a new
horizon to computing domain. Speedups of 10x to 100x
(e.g., string matching, DNA sequencing) can be achieved
by implementing many modules on the RFU to perform
fine-grain parallel operations.
One of the serious hurdles in realizing efficient
reconfigurable computing systems (RCS) is the placement
and routing of the RFUOPs (reconfigurable functional unit
operations) on the RFU. In this project, we try to find
fast methods for placing RFUOP modules on RFU as compact
as possible.
If the flow of the program being mapped to RCS is known
at compile time, then the placement stage can be modeled
as a three-dimensional placement problem:
assigning (x,y,t) tuples to each of the modules
(x and y specify the location of the
module on the chip and t is the time step in
which the RFUOP starts executing). On the other hand, if
the flow of the program cannot be determined during
compilation, then a fast online placement method
should be exploited to locate modules on the RFU during
runtime.
| |
 |
 |
Online
Placement
By partitioning the empty space on
RFU into empty rectangles, we can check if there
is enough room on RFU for a new module, by
comparing the module's dimensions against empty
rectangles.
We have explored two methods: one which keeps all
maximal empty rectangles (KAMER) and
another method which keeps only linear (in terms
of number of modules currently on RFU) number of
empty rectangles. The figures below show examples
of partitioning of the empty space by these
methods. The figure on the left shows KAMER, and
the one on the right shows the linear
partitioning result.
|
|

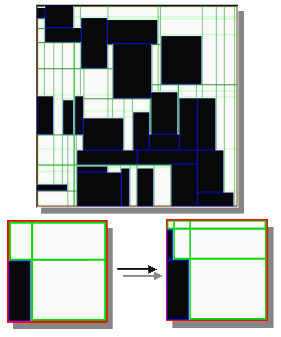

Keeping all maximal
empty
rectangles (KAMER)
|

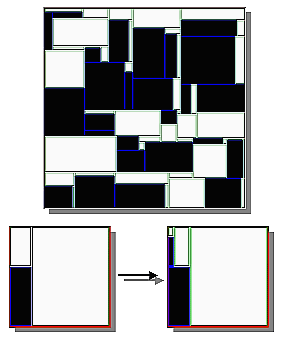

Keeping linear
number of
empty rectangles
|
We have shown that the former
method generates placements which are 5% better
in quality than the latter, but about 15 times

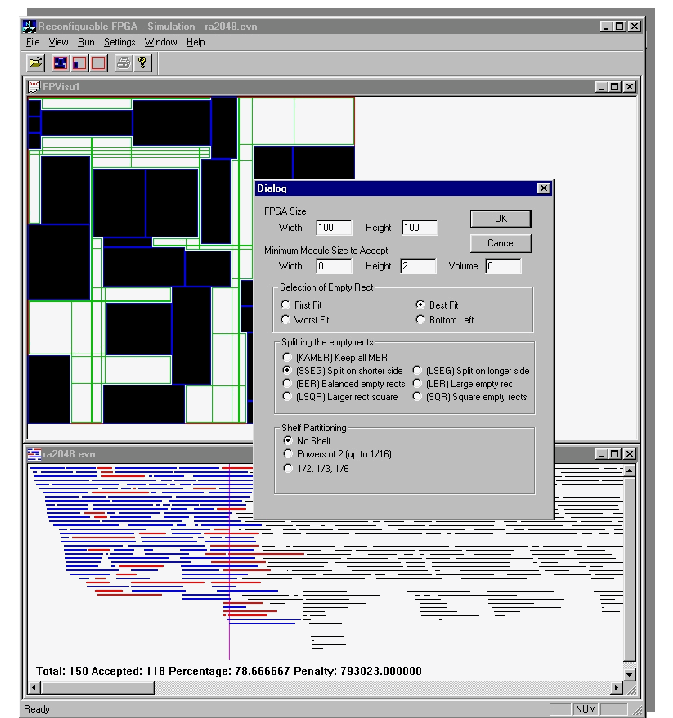

slower. The figure below shows a snapshot of our
online placement program.
|
| |
 |
|
Offline
3-D Placement
When the flow of the program can be accurately
predicted at compile time (e.g., in DSP
applications), we can use the information on
operation start and end times to optimize the set
of RFUOPs mapped on the RFU as well as their
locations so that the RFU real estate is used
efficiently.
When dealing with the offline case, we can
reformulate placement of RFUOPs as a three

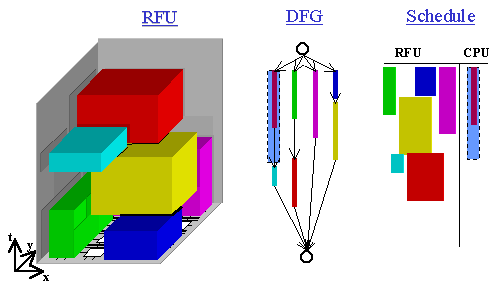

dimensional placement problem. The figure below
shows an example scheduled DFG and its
corresponding 3D floorplan.
We implemented a number of annealing and
greedy algorithms to solve the 3D floorplanning
problem. In the annealing methods, we used KAMER
to place X% largest (X being a parameter of the
algorithm) modules, and then used low temperature
annealing to improve the placement. The annealing
could displace a module on the RFU (no change in
start or end time), move an operation from CPU to
RFU and vice versa. In the greedy method, we used
KAMER to place as many modules as it could, and
then used zero-temperature annealing to the
resulting placement (only applying moves which
immediately improve the placement quality).
Another algorithm which happens to be the best
(both in terms of running time and generated
quality) is a greedy method that we called Best
Fit Offline Placement (BFOP). The method is
similar to the well-studied bin-packing problem.
Modules are first sorted on their volume (time
span times area) in decreasing order. Then, for
each RFUOP, the algorithm finds candidate corners.
A candidate corner is a corner of an empty
box (in the 3D floorplan space) which is
large enough to accommodate the RFUOP module.
From the candidate corners, the one which belongs
to the smallest box (resulting in minimum wasted

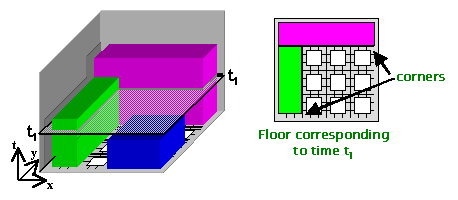

area) is picked. The figure below shows a corner
for a new module.
|
| |
 |
|
Using
Firm Templates in 3D Placement
We have observed that by using more than one
shape in the library for each module, we can gain
considerably in placement quality. If a module
cannot be placed at its first shape, the other
dimensions of the same module in the library are
tried. Whichever can be placed will be chosen. |
- K. Bazargan, R. Kastner and M. Sarrafzadeh,
"3-D
Floorplanning: Simulated Annealing and Greedy
Placement Methods for Reconfigurable Computing
Systems",
submitted to Design Automation for Embedded
Systems (DAfES) - RSP'99 Special Issue, April 2000.
(gzipped
ps) (PDF)
- K. Bazargan, R. Kastner and M. Sarrafzadeh,
"Fast Template
Placement for Reconfigurable Computing Systems",
to appear in IEEE Design and Test - Special
Issue on Reconfigurable Computing, January-March 2000.
(gzipped
ps) (PDF)
- R. Kastner, K. Bazargan and M. Sarrafzadeh,
"Physical
Design for Reconfigurable Computing Systems using
Firm Templates",
Workshop on Reconfigurable Computing (WoRC),
pp. 19-26, 1999. (gzipped
ps) (PDF)
- K. Bazargan, R. Kastner and M. Sarrafzadeh,
"3-D
Floorplanning: Simulated Annealing and Greedy
Placement Methods for Reconfigurable Computing
Systems",
10th IEEE International Workshop on Rapid
System Prototyping (RSP' 99), pp. 38-43,
1999. (gzipped
ps) (PDF)
- K. Bazargan and M. Sarrafzadeh,
"Fast Online
Placement for Reconfigurable Computing Systems",
IEEE Symposium on FPGAs for Custom Computing
Machines (FCCM), pp. 300-302, 1999. (gzipped
ps) (PDF)
You can download slides in gzipped ps (gzipped
ps with notes) format
OR
view them online
(more
convenient, with notes).
