# Two-dimensional channel flow (Orr-Sommerfeld operator)

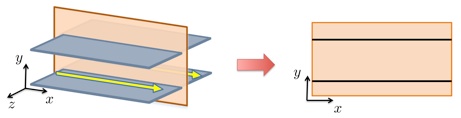

 Two-dimensional channel flow geometry.

The Orr-Sommerfeld equation governs the dynamics of two-dimensional velocity fluctuations around the laminar channel flow,

where

 — streamfunction , — streamwise and wall-normal forcing — Reynolds number — streamwise wavenumber — for shear-driven flow — for pressure-driven flow — Laplacian .

The boundary conditions are given by

The desired outputs are the streamwise and wall-normal velocity fluctuations,

The input-output differential equation representing the frequency response operator is given by

where

### Matlab codes

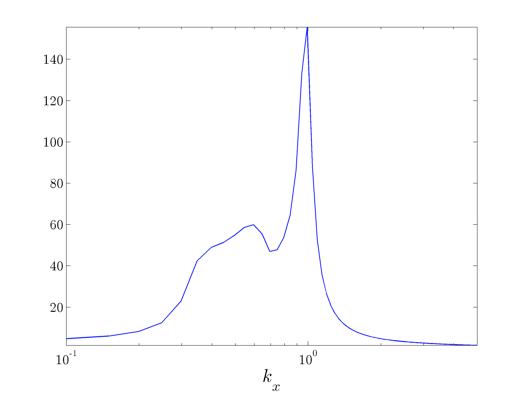

Find the largest singular value of the frequency response operator for the Orr-Sommerfeld equation in a pressure-driven channel flow as a function of at .

% System parameters:

R = 2000; % Reynolds number

kxval = linspace(0.1,5,100); % streamwise wave-number
kxgrd = length(kxval);

om = -0.3; % temporal frequency

dom = domain(-1,1);     % domain of your function
y = chebfun('y',dom);
fone = chebfun(1,dom);      % fone(y) = 1
fzero = chebfun(0,dom);     % fzero(y) = 0

U = diag(1 - y.^2);    % in pressure-driven flow
Uy = diag(-2*y);
Uyy = diag(-2*fone);

% Boundary conditions
Wa0{1} = [1, 0, 0, 0; 0, 1, 0, 0];
Wb0{1} = [1, 0, 0, 0; 0, 1, 0, 0];

% Looping over different values of kx
Smax = zeros(kxgrd,1); A0 = cell(1,1); B0 = cell(1,2); C0 = cell(2,1);

for indx = 1:kxgrd

kx = kxval(indx); kx2 = kx*kx; kx4 = kx2*kx2;

% coefficients of the A0 operator
% a0*phi + 0*phi' + a2*phi'' + 0*phi''' + 1/R*phi''''
a2 = -(2*kx2*(1/R)*fone + 1i*kx*U*fone + 1i*om*fone);
a0 = (1/R)*kx4*fone + 1i*kx*kx2*U*fone + 1i*kx*Uyy*fone + ...
1i*om*kx2*fone;

A0{1} = [a0, fzero, a2, fzero, (1/R)*fone];

% coefficients of the B0 operator
% 0*d1 - d1' + i*kx*d2 + 0*d2'
B0{1,1} = [fzero, -fone]; B0{1,2} = [1i*kx*fone, fzero];

% coefficients of the C0 operator
% u = 0*phi + 1*phi'; v = -i*kx*phi + 0*phi'
C0{1,1} = [fzero, fone]; C0{2,1} = [-1i*kx*fone, fzero];

% solving for the left principal singular pair
[Sfun, Sval] = svdfr(A0,B0,C0,Wa0,Wb0,1,1);

% saving the largest singular value at each kx
Smax(indx) = Sval(1);

end

% Plotting the largest singular value as a function of kx at a fixed om
plot(kxval,Smax,'-','LineWidth',1.1);
xlab = xlabel('k_x', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h,'FontName','cmr10','FontSize',15,'xscale','log','yscale','lin');

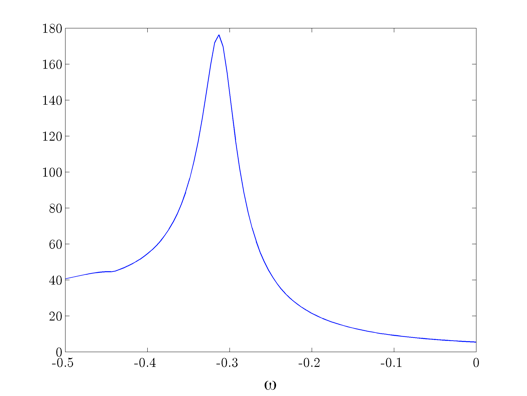

Find the largest singular value of the frequency response operator for the Orr-Sommerfeld equation in a pressure-driven channel flow as a function of at .

% the OS-equation as a function of om at kx = 1.
% System parameters:
kx = 1; % streamwise wave-number
kx2 = kx*kx; kx4 = kx2*kx2;

omval = linspace(-0.5,0,100); % temporal frequency
omgrd = length(omval);

% Looping over different values of om
Smax = zeros(omgrd,1); A0 = cell(1,1); B0 = cell(1,2); C0 = cell(2,1);

for indom = 1:omgrd

om = omval(indom);

% coefficients of the A0 operator
% a0*phi + 0*phi' + a2*phi'' + 0*phi''' + 1/R*phi''''
a2 = -(2*kx2*(1/R)*fone + 1i*kx*U*fone + 1i*om*fone);
a0 = (1/R)*kx4*fone + 1i*kx*kx2*U*fone + 1i*kx*Uyy*fone + ...
1i*om*kx2*fone;

A0{1} = [a0, fzero, a2, fzero, (1/R)*fone];

% coefficients of the B0 operator
% 0*d1 - 1*d1' + i*kx*d2 + 0*d2'
B0{1,1} = [fzero, -fone]; B0{1,2} = [1i*kx*fone, fzero];

% coefficients of the C0 operator
% u = 0*phi + 1*phi'; v = -i*kx*phi + 0*phi'
C0{1,1} = [fzero, fone]; C0{2,1} = [-1i*kx*fone, fzero];

% solving for the left principal singular pair
[Sfun, Sval] = svdfr(A0,B0,C0,Wa0,Wb0,1,1);

% saving the largest singular value for each value of om
Smax(indom) = Sval(1);

end

% Plotting the largest singular value as a function of om at a fixed kx
plot(omval,Smax,'-','LineWidth',1.1);
xlab = xlabel('\omega', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h,'FontName','cmr10','FontSize',15,'xscale','lin','yscale','lin');

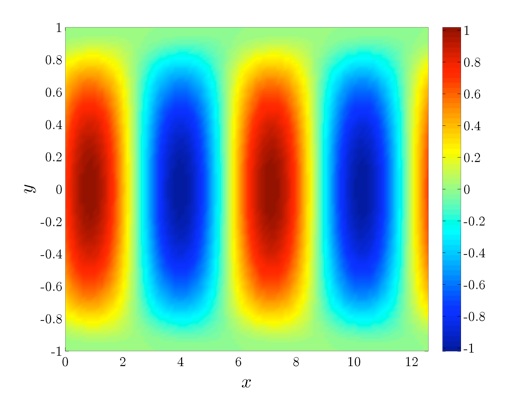

Find the most amplified flow structures for the Orr-Sommerfeld equation in a pressure-driven channel flow at and .

% System parameters:
kxval = [1 -1];   % streamwise wave-number
omval  = 0.313*[-1 1]; % temporal frequency

N = 100;    % number of collocation points for plotting
yd = chebpts(N);

% Looping over different values of om and kx
A0 = cell(1,1); B0 = cell(1,2); C0 = cell(2,1);

for n = 1:2

om = omval(n);
kx = kxval(n); kx2 = kx*kx; kx4 = kx2*kx2;

% coefficients of the A0 operator
% a0*phi + 0*phi' + a2*phi'' + 0*phi''' + 1/R*phi''''
a2 = -(2*kx2*(1/R)*fone + 1i*kx*U*fone + 1i*om*fone);
a0 = (1/R)*kx4*fone + 1i*kx*kx2*U*fone + 1i*kx*Uyy*fone + ...
1i*om*kx2*fone;

A0{1} = [a0, fzero, a2, fzero, (1/R)*fone];

% coefficients of the B0 operator
% 0*d1 - 1*d1' + i*kx*d2 + 0*d2'
B0{1,1} = [fzero, -fone]; B0{1,2} = [1i*kx*fone, fzero];

% coefficients of the C0 operator
% u = 0*phi + 1*phi'; v = -i*kx*phi + 0*phi'
C0{1,1} = [fzero, fone]; C0{2,1} = [-1i*kx*fone, fzero];

% solving for the left principal singular pair
[Sfun, Sval] = svdfr(A0,B0,C0,Wa0,Wb0,1,1);

ui = Sfun{1}; % streamwise velocity
vi = Sfun{2}; % wall-normal velocity

% discretized values for plotting
uvec(:,n) = ui(yd,1); vvec(:,n) = vi(yd,1);

end

% Getting physical fields of u and v
kx = abs(kxval(1));
xval = linspace(0, 4*pi/kx, 100); % streamwise coordinate

Up = zeros(N,length(xval));   % physical value of u
Vp = zeros(N,length(xval));   % physical value of v

for indx = 1:length(xval)

x = xval(indx);

for n = 1:2

kx = kxval(n);

Up(:,indx) =  Up(:,indx) + uvec(:,n)*exp(1i*kx*x);
Vp(:,indx) =  Vp(:,indx) + vvec(:,n)*exp(1i*kx*x);

end

end

Up = real(Up); Vp = real(Vp); % only real part exists

% Plotting the most amplified streamwise velocity structures
cb = colorbar('vert');
xlab = xlabel('x', 'interpreter', 'tex');
ylab = ylabel('y', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
set(ylab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h,'FontName','cmr10','FontSize',15,'xscale','lin','yscale','lin');
set(cb, 'FontName', 'cmr10', 'FontSize', 15);

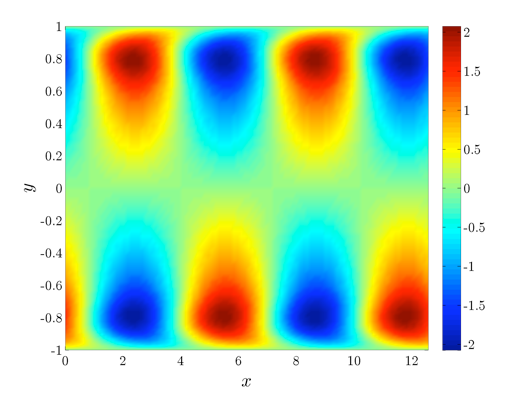

Plot the most amplified wall-normal velocity structures.

pcolor(xval,yd,Vp); shading interp;
cb = colorbar('vert');
xlab = xlabel('x', 'interpreter', 'tex');
ylab = ylabel('y', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
set(ylab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h,'FontName','cmr10','FontSize',15,'xscale','lin','yscale','lin');
set(cb, 'FontName', 'cmr10', 'FontSize', 15);
