# Boundary actuation: an Euler-Bernoulli beam

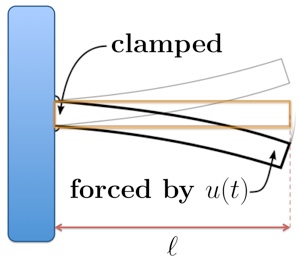

The vertical displacement of an Euler-Bernoulli beam that is clamped at the left end and subject to a boundary actuation at the other end is governed by

where

 — vertical displacement of the beam — force acting on the tip — length of the beam — mass per unit length of the beam — flexural stiffness — Voigt damping factor.

The outputs are given by

Application of the temporal Fourier transform yields

### Matlab codes

% System parameters:
omval = logspace(5,7,300);  % temporal frequencies

% beam parameters
alpha = 5e-8; mu = 1.88e-7; ell = 240e-6; EI = 7.55e-12;

% convenience variables
a4 = EI/(ell^4); a3 = EI/(ell^3);

dom = domain(0,1);  % domain, y \in [0, 1]
y = chebfun('y',dom);
D1 = diff(dom,1); % first-order differentiation operator

% fone(y) = 1; fzero(y) = 0;
fone = chebfun(1,dom); fzero = chebfun(0,dom);

% Boundary conditions on the right end:
Wa = [1, 0, 0, 0; 0, 1, 0, 0; zeros(2,4)];
r = [0; 0; 0; (1/a3)]; % non-homogeneous boundary conditions

% Computing frequency responses
H1 = zeros(length(omval),1); KE = zeros(length(omval),1);
PE = zeros(length(omval),1);

for indom = 1:length(omval)

om = omval(indom);

% boundary conditions on the left end
Wb = [zeros(2,4); ...
0, 0, 1, 0; ...
0, 0, 0, (1 + alpha*1i*om)];

% system coefficients
A0 = [-mu*om*om*fone, fzero, fzero, fzero, a4*(1 + alpha*1i*om)*fone];

% solving integral boundary value problem
% intbvp solves a scalar boundary value problem using the integral
% representation
% (type 'help intbvp' for more information on how to use intbvp)
[f,fder] = intbvp(A0,fzero,Wa,Wb,r);

% frequency responses
% 1) with the output g(t) = phi(1,t) = f(1,t)
H1(indom) = f(1);

% 2) with the output f(y,t) = phi(y,t)
% kinetic energy: KE = 0.5*integrate_{0}^{1} (f??(y))^2 dy
KE(indom) = 0.5*norm(D1*D1*f)^2;

% potential energy: PE = 0.5*om*om*integrate_{0}^{1} f(y)^2 dy
PE(indom) = 0.5*norm(om*f)^2;

end

% total energy: TE = PE + KE
TE = KE + PE;

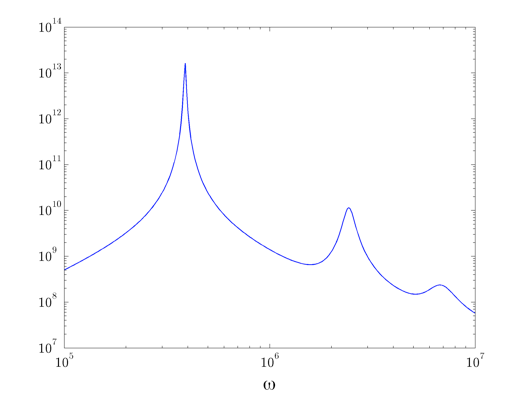

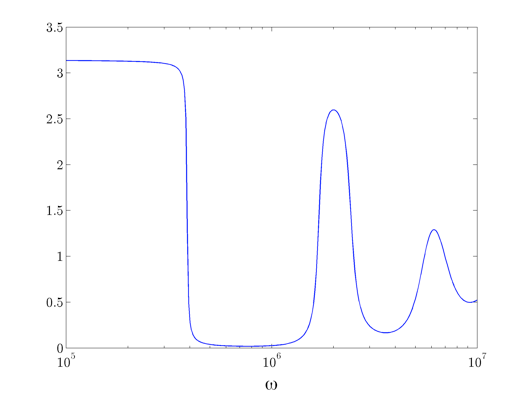

Plot the magnitude and phase of the transfer function from to .

loglog(omval,abs(H1),'b-','LineWidth',1.1)
xlab = xlabel('\omega', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h, 'FontName', 'cmr10', 'FontSize', 15);

semilogx(omval,unwrap(angle(H1)),'b-','LineWidth',1.1)
xlab = xlabel('\omega', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h, 'FontName', 'cmr10', 'FontSize', 15);

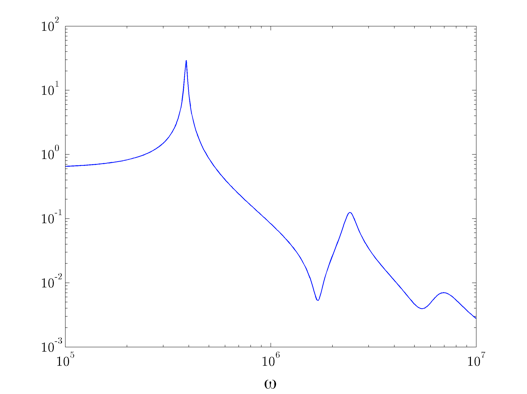

Plot the total energy of the beam arising from boundary actuation.

loglog(omval,TE,'b-','LineWidth',1.1)
xlab = xlabel('\omega', 'interpreter', 'tex');
set(xlab, 'FontName', 'cmmi10', 'FontSize', 20);
h = get(gcf,'CurrentAxes');
set(h, 'FontName', 'cmr10', 'FontSize', 15);
